Description
 |

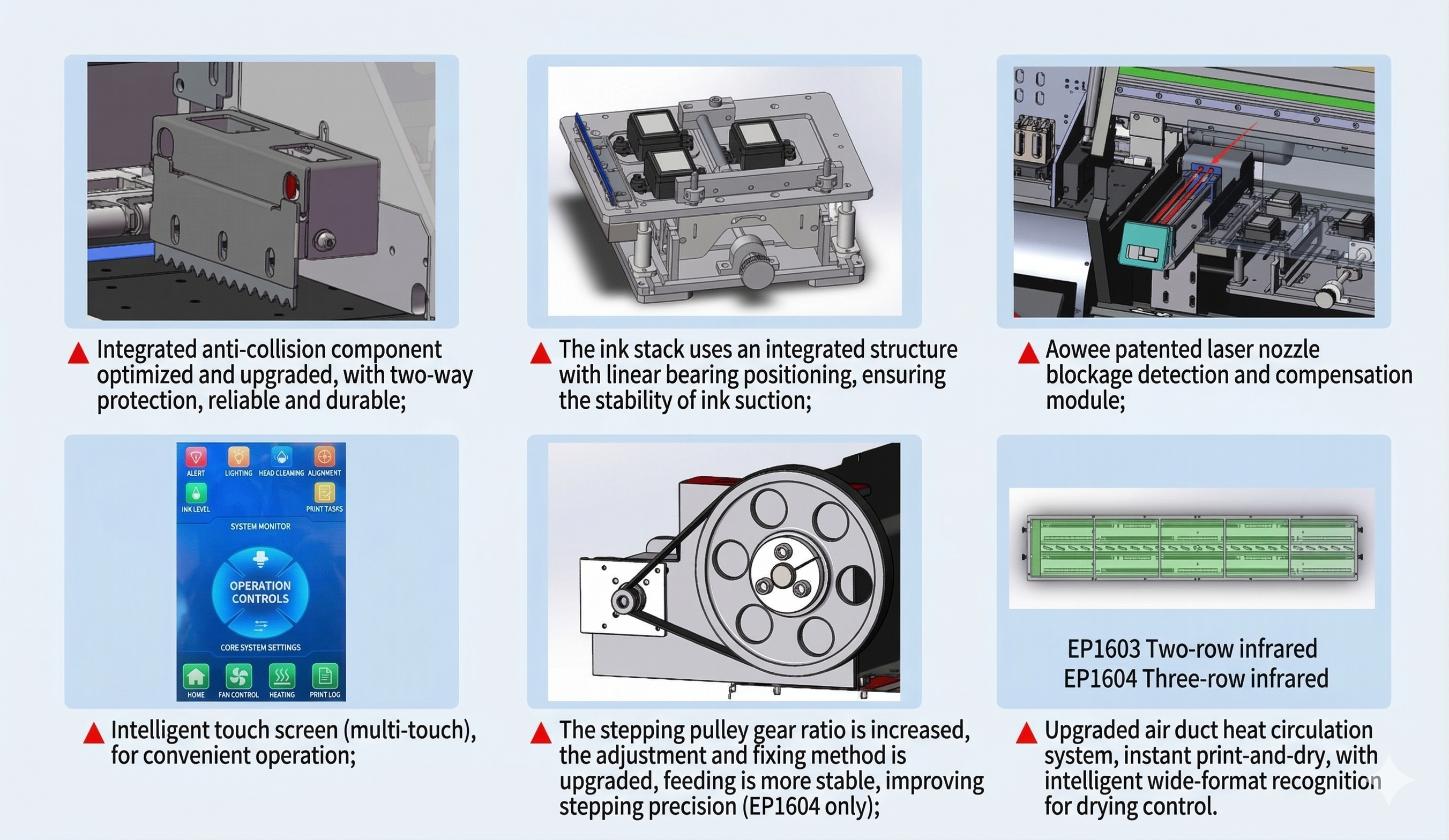

Imported high precision track |  |
High quality DC servo motor with good stability and long service life |
 |
Standard equipped with intelligent infrared heating and air drying system |  |
External power supply, intelligent paper collecting system, the feeder will automatically start and shut down as the machine prints and stops, extending the service life of the feeder motor |
 |
Automatic moisturizing cleaning module ensures the cleaning and working stability |  |
Print heads collision avoidance system can effectively prevent the head from crashing during printing |
Additional Information
| Mode | E1604 | |||
| Head Model | EPSON I3200-A1 | EPSON I3200-E1 | ||
| Ink Model | CMYK | |||
| Wide Application | Indoor and outdoor PP and photo paper, car sticker, water – based backlit film, eco-solvent lamp, canvas, non-wovenCloth, digital printing materials, etc. | |||
| Print width | 1.6M | |||
| Medium | Width：1.6M
Thickness：1MM Weight：60KGS |
|||
| Ink cartridge | Type：Solvent/water-based/SublimationVolume：220ml cartridge +5.0L Big volume ink-bottle with float
Color：Four Color |
|||
| Printing resolution | EPSON I3200-A1（Maximum 1440dpi） | EPSON I3200-E1（Maximum 2400dpi） | ||
| Head qty | 2PCS | 4PCS | 2PCS | 4PCS |
| Printing speed | 3pass:60m2/h
4pass:42m2/h 6pass:30m2/h |
3pass:120m2/h
4pass:84m2/h 6pass:60m2/h |
3pass:44m2/h
4pass:32m2/h 6pass:22m2/h |
3pass:88m2/h
4pass:64m2/h 6pass:44m2/h |
| Size | 3290mm*995mm*1860mm | 3290mm*995mm*1860mm | ||
| Net Weight | 370 KGS (Two heads) | 400KGS (Four heads) | ||
| Wooden box package | 3400mm*920mm*1120mm | 3400mm*920mm*1120mm | ||
| Gross Weigh | 420 KGS (Two heads) | 450KGS (Four heads) | ||
| Heating system | Integrated heater, infrared dryer and fan system | |||
| Interface | USB2.0 | |||
| Power | AC220V,50/60HZ | |||
