Description
Using heavy type feeding & collecting system, can handle 500 meters large roll material to ensure high speed printing without deviation and wrinkling, and instant drying in the same time
 | Screw drive cleaning structure, improve the moisture accuracy of ink cup |  | Adopt big blade, improve cleaning efficiency |
 | Electric pinch roller lifting system is easy to operate |  | Adopt gear trolley lifting structure, easy to switch printing material with different thickness |
Additional Information

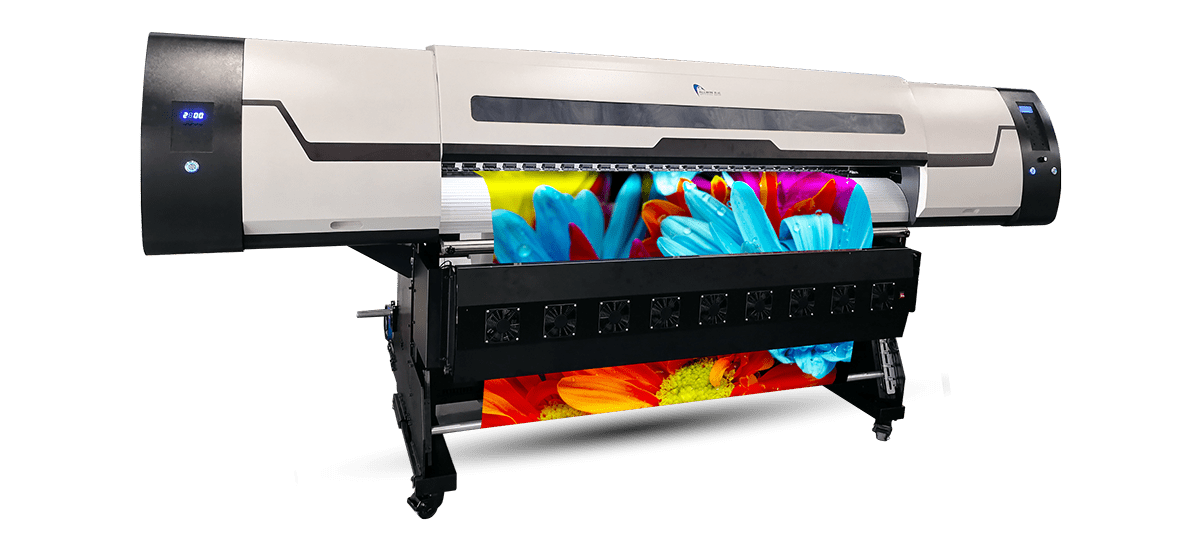

| Model | AW-EP19 Eight heads printer |
| Head Model | EPSON I3200-A1 |
| Printhead quantity | Eight heads |
| Ink Model | CMYK |
| Wide Application | Indoor and outdoor PP and photo paper, car sticker, water – based backlit film, eco-solvent lamp, canvas, non-wovenCloth, digital printing materials, etc. |
| Print width | 1.9M |
| Medium | Width：1.9M Thickness：1.8MM Weight：60KGS |
| Ink cartridge | Type：Solvent/water-based/Sublimation Volume：220cc 2ndcartridge +3.0L Big volume ink-bottle with float Color：Four Color |
| Printing resolution | Maximum 2400dpi |
| Printing speed | 1pass(360*1200DPI): 246m2/H 2pass(360*2400DPI): 161m2/H |
| Size | 3720MM*1350MM*1750MM |
| Net Weight | 700KGS |
| Wooden box package | 3900MM*1500MM*1950MM |
| Gross Weigh | 800KGS |
| Heating system | Integrated heater, infrared dryer and fan system |
| Interface | USB3.0 |
| Power | AC220V，50/60HZ |
| Working Environment | Power on Temperature 18℃-28℃ Power off Humidity 40%-60% |
