Description
● Adopt metal raster with magnetic linear motion sytem, higher printing resolution and stability with longer lifespan |
● To print standard size board, it can achieve continuous printing without pause and changing the board, which increases the production efficiency |
● To print standard size board, it can achieve continuous printing without pause and changing the board, which increases the production efficiency |
 |
||
Additional Information

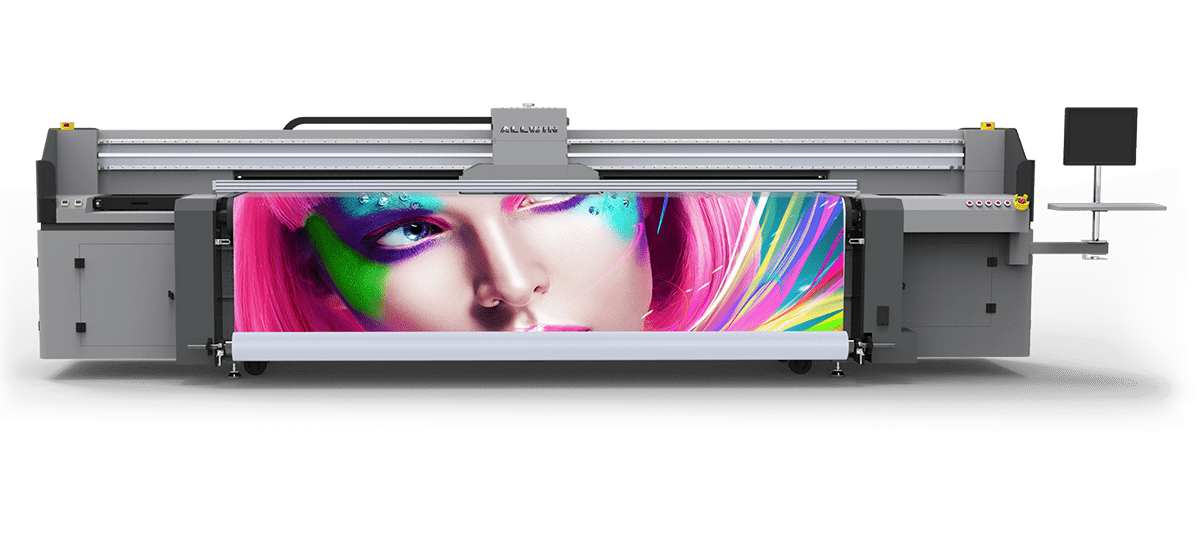

| Model | ALLWIN 5000/3200/2200 hybrid UV printer |
| Printhead | 5m：KM1024aSHE (4-24H) / 3.2m：KM1024aSHE (4-14H) |
| Resolution | 1440DPI |
| Speed | 5m：169m2h-16H / 3.2m：105m2h-12H |
| Color option | CMYK/double CMYK/ CMYK LC LM (White and varnish optional) |
| Media thickness | 0mm~25mm |
| Lamp | LED Lamp |
| Platform section | 4/8 sections with adjustable sucking fan power to fit different media |
| Print type | Roll to roll/ rigid media |
| Print width | 5000mm / 3200mm |
| Ink type | UV curing ink |
| Option | Front and rear extensional frame desk |
| Bulk volume | 3L bottle with ink alarm, ink filling without pause |
| Ink supply system | Automatic negative ink supply system |
| Media type | Glass, ceramic, metal, paper board, leather, wall paper, soft film, PVC, PP, PE |
| Operation system | Windows 7/10 64bit.RAW≥500G. SSD≥128G. CPU≥lnte i5 |
| RIP software | Photoprint/Print Factory (Caldera for option) |
| Work environment | Temp.: 18~26℃ to reduce the staticHumidity: 40~70% to reduce the static |
| Power | Max power: 10KW；AC,50HZ/60HZ；220V(±10%)＞45A |
| File format | Tiff,JPEG,EPS,PDF |
| Machine dimension | 5970x1600x1640mm / 5970x3360x1640mm (with optional front and rear desk) |
| NW/GW | 2200kg/2700kg (3.2m) |
| Security Certificate | CE |
